Open Frame 27 Inch HD1920*1080 Touch Screen Monitor For Industrial Use Portable PCAP

Open Frame 27 Inch HD1920*1080 Touch Screen Monitor For Industrial Use Portable PCAP
Open Frame 27 Inch HD1920*1080 Touch Screen Monitor For Industrial Use Portable PCAP
Open Frame 27 Inch HD1920*1080 Touch Screen Monitor For Industrial Use Portable PCAP Open Frame 27 Inch HD1920*1080 Touch Screen Monitor For Industrial Use Portable PCAP Open Frame 27 Inch HD1920*1080 Touch Screen Monitor For Industrial Use Portable PCAP Open Frame 27 Inch HD1920*1080 Touch Screen Monitor For Industrial Use Portable PCAP Open Frame 27 Inch HD1920*1080 Touch Screen Monitor For Industrial Use Portable PCAP Open Frame 27 Inch HD1920*1080 Touch Screen Monitor For Industrial Use Portable PCAP Open Frame 27 Inch HD1920*1080 Touch Screen Monitor For Industrial Use Portable PCAP

Large Image :  Open Frame 27 Inch HD1920*1080 Touch Screen Monitor For Industrial Use Portable PCAP

Product Details:
Place of Origin: China
Brand Name: Anwell Touch
Certification: CE,RoHS,FCC
Model Number: AW270CS-I001
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiable
Packaging Details: Standard carton box
Delivery Time: 15 working days
Payment Terms: TT
Supply Ability: 5000 pieces per Month
Contact Now

Open Frame 27 Inch HD1920*1080 Touch Screen Monitor For Industrial Use Portable PCAP

Description
Aspect Ratio: 16:9 Resolution: 1920*1080
Interface Type: VGA, Serial, Usb Response Time: 5ms
Contrast Ratio: 3000:1 Brightness: 300cd/m2
Type: Capacitive Touch Colors: 16.7M
Viewing Angle: 85/85/80/80 (Typ.)(CR≥10) Touch Technology: 10 Points Multi-Touch Capacitive Touch Screen
Warranty: 1 Year Interface: VGA,HD-MI,USB,DC
Highlight:

pcap 15 inch industrial touch screen monitor

,

pcap touch screen monitor for industrial use

,

open frame 15 inch industrial touch screen monitor

Product Description
  • 27 Inch Buckle Embedded Industrial Monitor PCAP Touch Screen







Touch Gaming monitor Feature:
• Touch signal input : RS232 / USB
• Signal input: VGA/DVI/HD-MI
• Support embedded rack mounted / VESA wall mounted
• AU,EU,US,UK plug available

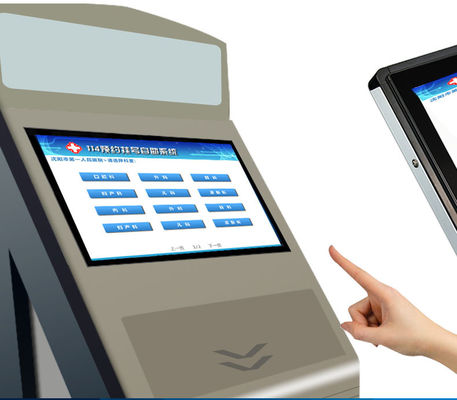

• Application: Game machine,Interactive kiosk, Interactive digital signage,Industrial enclosure, Cabinet, In-wall devices.






Product Specification
The specifications of 27 Inch wide 16:9 Industrial Touch Monitor
Project
Model
AW270CS-I001
Display
Screen Size & Resolution
27 inch 1920*1080
Aspect Ratio
16:9
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Contrast Ratio
3000:1
Response Time
6ms
Brightness
300 cd/m² (Typ.)
Colors
16.7M
Touch Screen
Touch Technology
10 points Multi-Touch Capacitive Touch Screen
Touchscreen Transparency
87%
Touch Surface Hardness
>7H
Resolution
4096*4096
Touch Response Time
<10ms

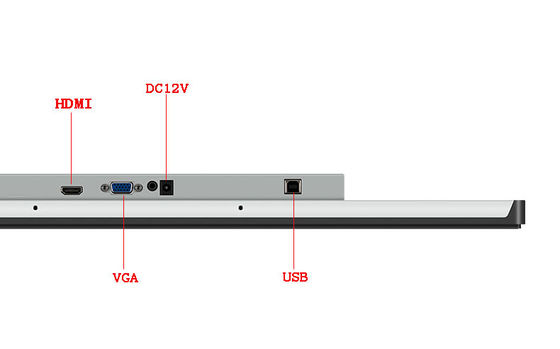

I/O port
Interface
VGA HDMI USB DC12V






Others
Power Supply
DC12V 4A AC110~220V
Installation
Windows 7/ Windows 8/Windows 10
Product size
VESA 100×100,frame*Side mount
Product size
657×398×44.1mm
Active Display Area
597.6(W)×336.15(H) mm
Humidity
Operating:20%~80%, Storage:10%~90%
Altitude
<3000 m
Accessories
VGA cable, USB cable, Power adapter
1).This series of industrial capacitive touch screen monitor, we can offer 15"~43".
2). The surface can get IP65 waterproof level, if you need use for outdoor sunlight reaeable, the brightness can get 1000cd/m2~1500cd/m2.(based on the size)
3). This series also can do all-in-one industrial PC from 15"~43".



Open Frame 27 Inch HD1920*1080 Touch Screen Monitor For Industrial Use Portable PCAP 0Open Frame 27 Inch HD1920*1080 Touch Screen Monitor For Industrial Use Portable PCAP 1Open Frame 27 Inch HD1920*1080 Touch Screen Monitor For Industrial Use Portable PCAP 2



Tag:

industrial touchscreen monitor,

ip65 touch screen monitor,

embedded touch monitor
