19 Inch Infrared Touch Screen Gaming Monitor Compatible With 3M/ELOs Protocol

Large Image : 19 Inch Infrared Touch Screen Gaming Monitor Compatible With 3M/ELOs Protocol

Product Details:

Place of Origin:	China
Brand Name:	Anwell Touch
Certification:	CE,Rohs,FCC
Model Number:	AW190IB-G001
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	3 Pieces
Price:	Negotiable
Packaging Details:	Standard carton box
Delivery Time:	8-15 working days
Payment Terms:	TT
Supply Ability:	10000 pieces per Month

Contact Now

19 Inch Infrared Touch Screen Gaming Monitor Compatible With 3M/ELOs Protocol

Description

Color:	Black	Series:	Gaming
Touch Screen Type:	Infrared	Touch Signal Input:	RS232
Viewing Angle:	178/178 (H/V)	Optional:	Bezel Optional
Function:	Work On Pot O Gold/ WMS	Response Time:	≤6ms
Single Package Size::	50X10X41 Cm	Single Gross Weight::	7.500 Kg
Highlight:	Gaming Infrared Touch Screen , 3M/ELOs Infrared Touch Screen , 19 Inch game machine monitor

Product Specification

Name: Open Frame 19inch IR Touch screen Monitor

Model: AW190IB-G001

Product Picture:

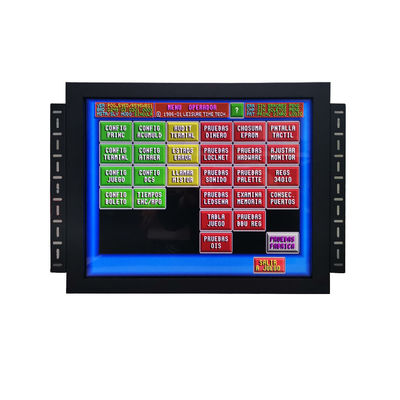

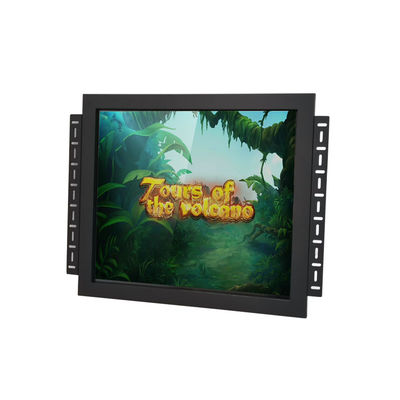

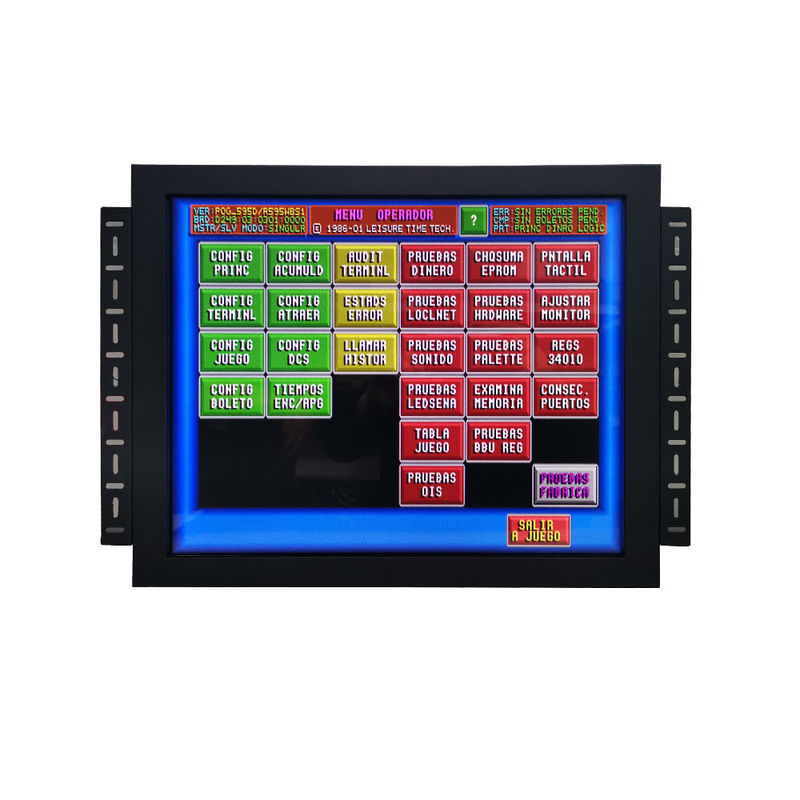

19 Inch Infrared Touch Screen Gaming Monitor Compatible With 3M/ELOs Protocol 0

Product Paramenters:

Anwell Model	AW190IB-G001
Monitor Color	Black
Aspect Ratio	4:3
Resolution	1280×1024
Colors	16.7 M
Active Area	376.32(W) × 301.056(H) mm
Number of Touches	1 points_Touch Infrared Touch Screen
Brightness	300 cd/㎡
Response Time	5 ms
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Contrast Ratio	1000:1
Backlight Lifetime (hours)	LED / 50,000h

Touch Technology	1 points Infrared Touch
Touch Connector	RS232
Touch Panel Drivers	Compatible with 3M/ELO protocol
Touch Response Time	＜5ms

Power Supply	Input AC110 ~ 240V
Output	DC 12V/4A

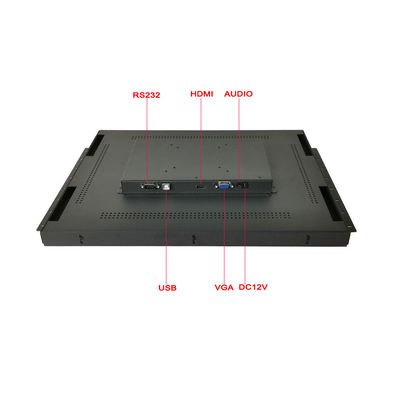

Interface	VGA,RS232
Power consumption	≤25W

Temperature	Operating 0℃~50℃/Storage‐ 20℃~60℃
Humidity Range (RH)	Operating 20%RH~80%RH/Storage10%RH~90%RH
Housing material	Metal
Installation	75mm and 100mm VESA mount
Warranty(year)	1 Year
Support customization

Structural dimension diagram:
