Open Frame Touchscreen Monitor 32 Inch With P-Cap And USB Interface With Resolution 1920x1080

Open Frame Touchscreen Monitor 32 Inch With P-Cap And USB Interface With Resolution 1920x1080
Open Frame Touchscreen Monitor 32 Inch With P-Cap And USB Interface With Resolution 1920x1080 Open Frame Touchscreen Monitor 32 Inch With P-Cap And USB Interface With Resolution 1920x1080 Open Frame Touchscreen Monitor 32 Inch With P-Cap And USB Interface With Resolution 1920x1080 Open Frame Touchscreen Monitor 32 Inch With P-Cap And USB Interface With Resolution 1920x1080 Open Frame Touchscreen Monitor 32 Inch With P-Cap And USB Interface With Resolution 1920x1080

Large Image :  Open Frame Touchscreen Monitor 32 Inch With P-Cap And USB Interface With Resolution 1920x1080

Product Details:
Place of Origin: China
Brand Name: Anwell Touch
Certification: CE,RoHS,FCC
Model Number: AW320CB-I001
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiable
Packaging Details: Standard carton box
Delivery Time: 15 working days
Payment Terms: TT
Supply Ability: 5000 pieces per Month
Contact Now

Open Frame Touchscreen Monitor 32 Inch With P-Cap And USB Interface With Resolution 1920x1080

Description
Aspect Ratio: 16:9 Resolution: 1920 X 1080
Interface Type: DVI, Serial, Usb Response Time: 5ms
Contrast Ratio: 1000:1 Brightness: 300cd/m2
Type: Capacitive Touch Colors: 16.7M
Viewing Angle: 85/85/80/80 (Typ.)(CR≥10) Touch Technology: 10 Points Multi-Touch Capacitive Touch Screen
Warranty: 1 Year Interface: VGA,HD-MI,USB,DC
Highlight:

1920x1080 open frame touchscreen

,

1920x1080 open frame touch screen monitor

,

32 inch open frame touchscreen

Product Description
  • Open frame touchscreen monitor 32 inch touchmonitor







Touch Gaming monitor Feature:
• Touch signal input : RS232 / USB
• Signal input: VGA/DVI/HD-MI
• Support embedded rack mounted / VESA wall mounted
• AU,EU,US,UK plug available
• Application: Game machine,Interactive kiosk, Interactive digital signage,Industrial enclosure, Cabinet, In-wall devices.

Product Description
Project
Model
AW320CB-I001
Display
Diagnoal Size
32inch
Aspect Ratio
16:9
LCD Technology
LED
Active Display Area
697.31 × 392.23 mm (H×V)
Resolution Ratio
1920*1080
Brightness
300 cd/m² (Typ.)
Contrast Ratio
1000:1
Colors
16.7M
Response Time
5ms
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
TouchScreen
Touch Technology
Capacitive Touch Screen
Touchscreen Transparency
87%
Touch Surface Hardness
>7H
Touch Response Time
<10ms

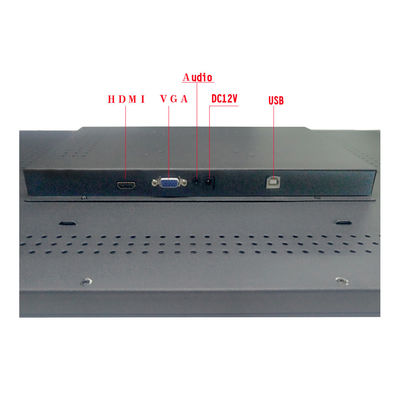

I/O port
Interface
VGA HDMI USB DC
Others
Power Supply
DC12V 5A AC110~240V

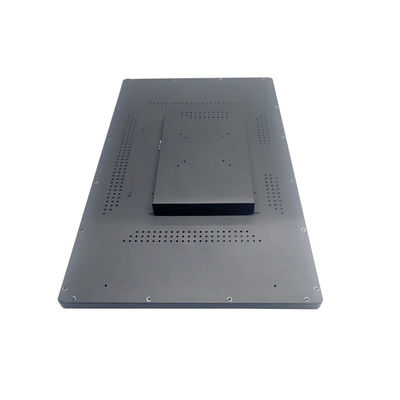

Installation
VESA 100×100,75×75
Product size
770×465×57mm
Temperature
Operating:0℃~40℃, Storage:-20℃~60℃
Humidity
Operating:20%~80%, Storage:10%~90%
Altitude
<3000 m
Accessories
hdmi cable, USB cable, Power adapter
Details Images

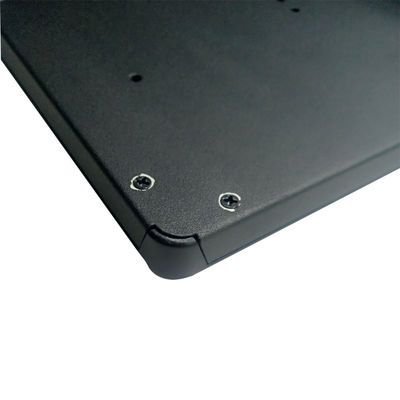

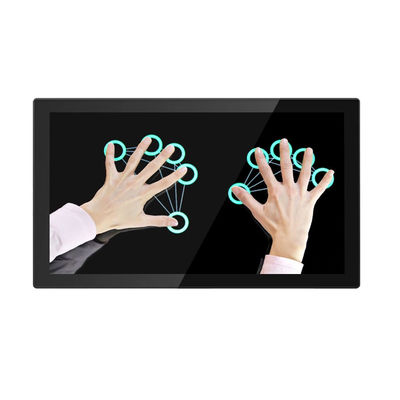

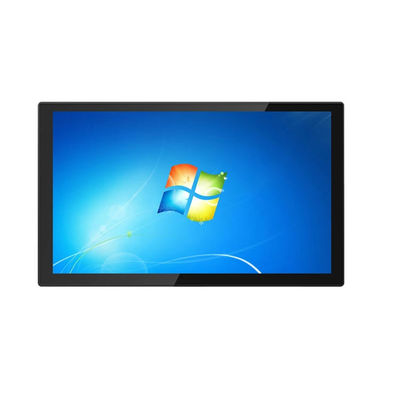

Open Frame Touchscreen Monitor 32 Inch With P-Cap And USB Interface With Resolution 1920x1080 0
Open Frame Touchscreen Monitor 32 Inch With P-Cap And USB Interface With Resolution 1920x1080 1
Open Frame Touchscreen Monitor 32 Inch With P-Cap And USB Interface With Resolution 1920x1080 2
