General Touch 10.1Inch Open Frame LCD Industrial Touch Monitor With Pure Plane

Large Image : General Touch 10.1Inch Open Frame LCD Industrial Touch Monitor With Pure Plane

Product Details:

Place of Origin:	China
Brand Name:	Anwell Touch
Certification:	CE,RoHS,FCC
Model Number:	AW101CB-I002
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	Negotiable
Packaging Details:	Standard carton box
Delivery Time:	15 working days
Payment Terms:	TT
Supply Ability:	5000 pieces per Month

Contact Now

General Touch 10.1Inch Open Frame LCD Industrial Touch Monitor With Pure Plane

Description

Aspect Ratio:	16:10	Resolution:	1280*800
Interface Type:	VGA, Serial, Usb	Response Time:	5ms
Contrast Ratio:	1000:1	Brightness:	300cd/m2
Colors:	16.7M	Viewing Angle:	85/85/80/80 (Typ.)(CR≥10)
Touch Technology:	10 Points Multi-Touch Capacitive Touch Screen	Interface:	VGA,HD-MI,USB,DC
Highlight:	10.1inch industrial touch screen , 10.1inch industrial touch monitor , lcd industrial touch screen

Product Description

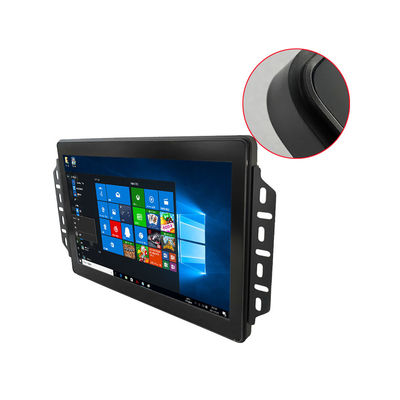

General Touch 10.1 Inch Open Frame LCD Touch Screen Monitor With Pure Plane

Touch Gaming monitor Feature:
• Touch signal input : RS232 / USB
• Signal input: VGA HD-MI USB DC-12V
• Support embedded rack mounted / VESA wall mounted

• AU,EU,US,UK plug available
• Application: Game machine,Interactive kiosk, Interactive digital signage,Industrial enclosure, Cabinet, In-wall devices.

Product Description

The specifications of 10.1 Inch 16:10 Industrial Touch Monitor
Project	Model	AW101CB-I002
Project	Model	AW101CB-I002
Display	Screen Size	10.1 inch
	Aspect Ratio/Resolution	16:10 1280*800
	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
	Contrast Ratio	800:1
	Response Time	10/30(Typ.) (Tr/Td) ms
	Brightness	300 cd/m² (Typ.)
	Colors	16.7M
Touch Screen	Touch Technology	10 points Multi-Touch Capacitive Touch Screen
	Touchscreen Transparency	87%
	Touch Surface Hardness	>7H
	Resolution	4096*4096
	Touch Response Time	<10ms

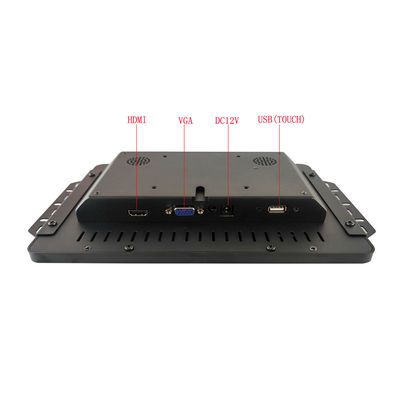

I/O port	Interface	VGA HD-MI USB DC12V
Others	Power Supply	DC12V 4A AC110~220V
	Installation	VESA 100×100,frame*Side mount
	Product size	260×178×36mm
	Active Display Area	219.96(W)×135.6(H) mm
	Temperature	Operating:0℃~40℃, Storage:-20℃~6℃
	Humidity	Operating:20%~80%, Storage:10%~90%
	Altitude	<3000 m
	Accessories	VGA cable, USB cable, Power adapter

Details Images
