Customizable 17inch Gaming Infrared Touch Screen Monitor for Customer Requirements

Large Image : Customizable 17inch Gaming Infrared Touch Screen Monitor for Customer Requirements

Product Details:

Place of Origin:	China
Brand Name:	Anwell Touch
Certification:	CE,Rohs,FCC
Model Number:	AW170IS-G001
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	3 Pieces
Price:	Negotiable
Packaging Details:	Standard carton box
Delivery Time:	8-15 working days
Payment Terms:	TT
Supply Ability:	10000 pieces per Month

Contact Now

Customizable 17inch Gaming Infrared Touch Screen Monitor for Customer Requirements

Description

Color:	Silver	Series:	For Gaming
Aspect Ratio:	4:3	Touch Screen Type:	Infrared
Touch Signal Input:	RS232	Viewing Angle:	178 /178 (H/V)
Optional:	Bezel Optional	Function:	Work On Pot O Gold/ WMS/ FOX340
Response Time:	≤ 7ms	Single Gross Weight::	7.500 Kg
Highlight:	17inch digital kiosk touch screen , 17inch kiosk touch screen monitor , interactive digital kiosk touch screen

Name: Open Frame 17inch Infrared Touch Monitor

Model: AW170IS-G001

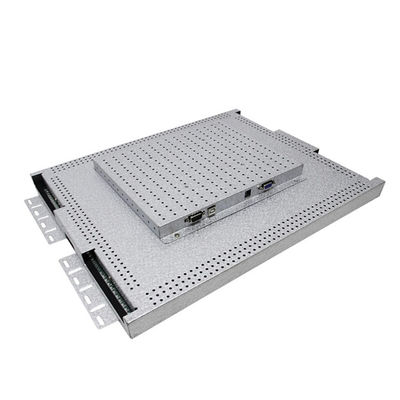

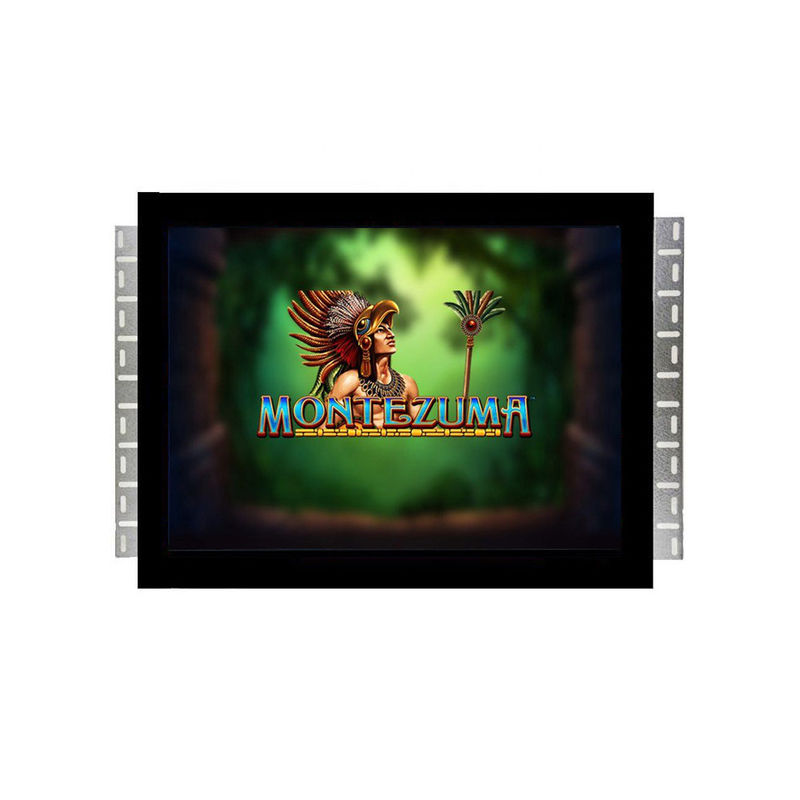

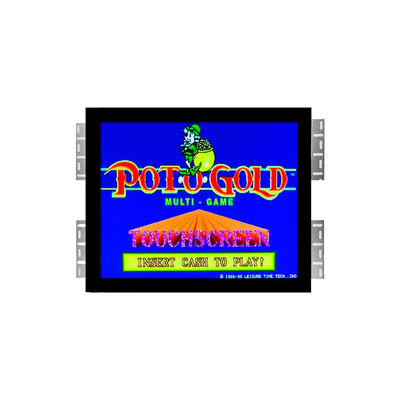

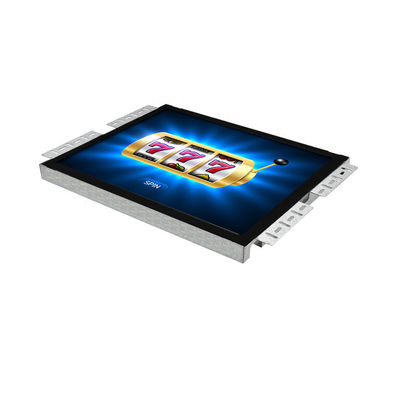

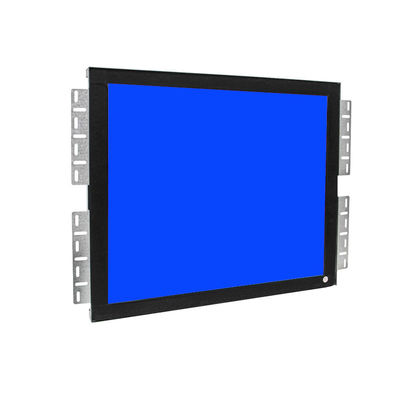

Product Picture:

Customizable 17inch Gaming Infrared Touch Screen Monitor for Customer Requirements 0

Product Paramenters:

Anwell Model	AW170IS-G001
Monitor Color	Silver
Aspect Ratio	4:3
Resolution	1280×1024
Colors	16.7 M
Active Area	337.92(W)×270.336(H) mm
Number of Touches	1 points_Touch Infrared Touch Screen
Brightness	300cd/㎡
Response Time	<7 ms
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Contrast Ratio	800:1
Backlight Lifetime (hours)	LED / 50000h

Touch Technology	1 points Infrared Touch
Touch Connector	RS232
Touch Panel Drivers	Compatible with 3M/ELO protocol
Touch Response Time	＜5ms

Power Supply	Input AC110 ~ 240V
Output	DC12V/4A
Interface	VGA
Power consumption	≤25W

Temperature	Operating 0℃~50℃/Storage‐ 20℃~60℃
Humidity Range (RH)	Operating 20%RH~80%RH/Storage10%RH~90%RH
Housing material	Metal
Installation	75mm and 100mm VESA mount
Warranty(year)	1 Year
Support customization

Structural dimension diagram:
