55"Inch Infrared Multi Touch Overlay Kit Open Frame Black 300cd/M²

Large Image : 55"Inch Infrared Multi Touch Overlay Kit Open Frame Black 300cd/M²

Product Details:

Place of Origin:	China
Brand Name:	Anwell Touch
Certification:	CE,Rohs,FCC
Model Number:	AW550IR-A001
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	Negotiable
Packaging Details:	Standard carton box
Delivery Time:	8-15 working days
Payment Terms:	TT
Supply Ability:	5000 pieces per Month

Contact Now

55"Inch Infrared Multi Touch Overlay Kit Open Frame Black 300cd/M²

Description

Type:

Infrared Touch Overlay Frame

Series:

For Gaming

Aspect Ratio:

16:9

Interface Type:

Serial Or USB

Highlight:

multi touch overlay kit open frame

55" touch screen pcap

55" multi touch overlay kit

Product Description

55"Inch Infrared multi touch overlay frame touch panel

Touch Gaming monitor Feature:
• Compatible with 3M/ELOs protocol
• Touch signal input : RS232 / USB
• Signal input: VGA/DVI/HD-MI
• Support embedded rack mounted / VESA wall mounted

• AU,EU,US,UK plug available
• Application: Game machine,Interactive kiosk, Interactive digital signage,Industrial enclosure, Cabinet, In-wall devices

Specifications
55"Inch Infrared multi touch overlay frame general open frame Kit
Model	AW550IR-A001
Monitor Color	Black
Resolution	1920 x 1080
Number of Touches	Single-touch ( multitouch optional)
Brightness	300cd/m²
Response	5 msec

Touch Technology	Infrared touch
Touch Connector	USB/RS232
Touch Panel Drivers	compatible with 3M/ELO protocol
Touch Life (Contacts)	Unlimited
Surface Hardness	7H
Operating Temperature	-10 ~ +65(°C)
Humidity Range (RH)	10%-90%
Housing material	Metal or Aluminum

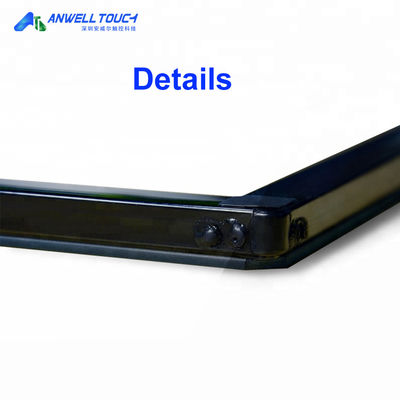

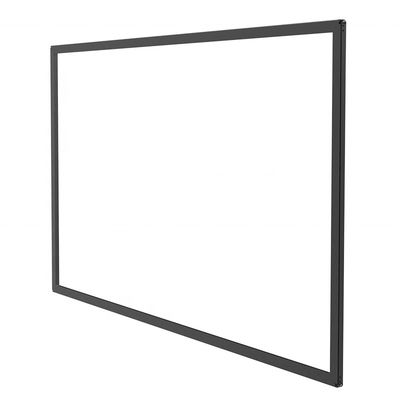

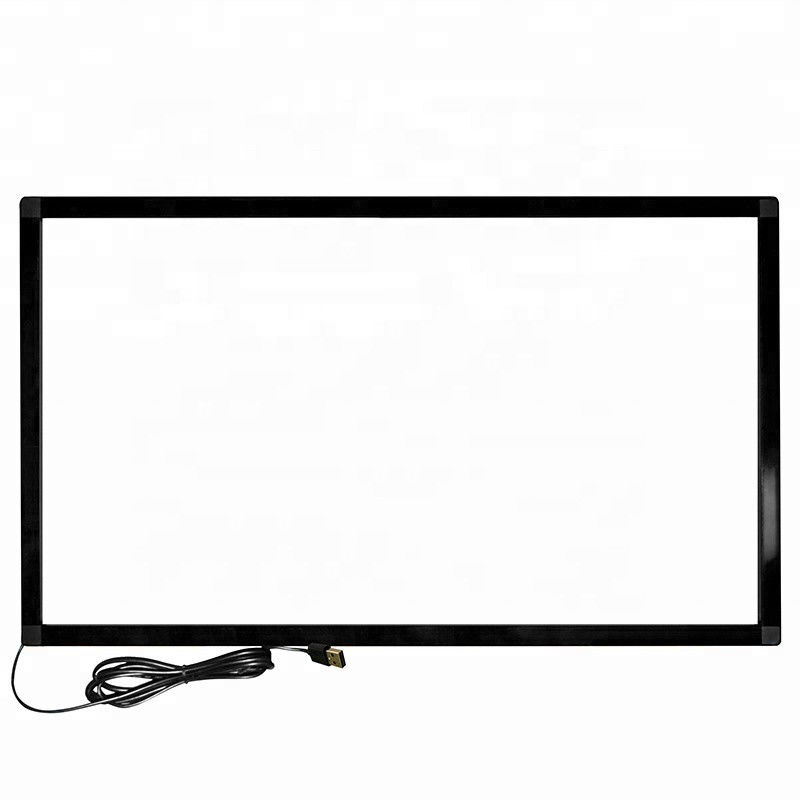

55"Inch Infrared Multi Touch Overlay Kit Open Frame Black 300cd/M² 1

55"Inch Infrared Multi Touch Overlay Kit Open Frame Black 300cd/M² 2
