22 Inch IR Touch Monitor With Bezels 3M Touch For WMS / POG / ASR Gaming

Large Image : 22 Inch IR Touch Monitor With Bezels 3M Touch For WMS / POG / ASR Gaming

Product Details:

Place of Origin:	China
Brand Name:	Anwell Touch
Certification:	CE,Rohs,FCC
Model Number:	AW220IS-G001
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	3 Pieces
Price:	Negotiable
Packaging Details:	Standard carton box
Delivery Time:	8-15 working days
Payment Terms:	TT
Supply Ability:	10000 pieces per Month

Contact Now

22 Inch IR Touch Monitor With Bezels 3M Touch For WMS / POG / ASR Gaming

Description

Color:	Silver	Series:	For Gaming
Touch Screen Type:	Infrared Touch	Touch Signal Input:	RS232
Viewing Angle:	178 / 178(H/V)	Optional:	Bezel Optional
Function:	Work On Pot O Gold/ WMS/ FOX340	Response Time:	≤ 10ms
Highlight:	22 inch ir touch monitor , 3m ir touch monitor , 3m gaming touch monitor

Product Specification

Name: Open Frame 22inch Infrared Touch screen Monitor

Model: AW220IS-G001

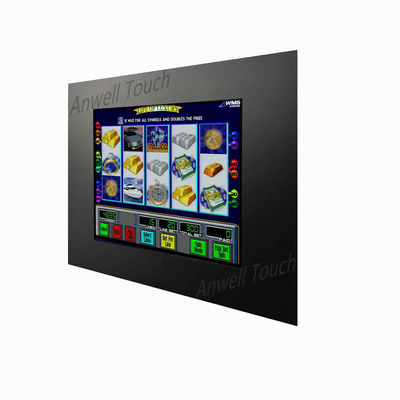

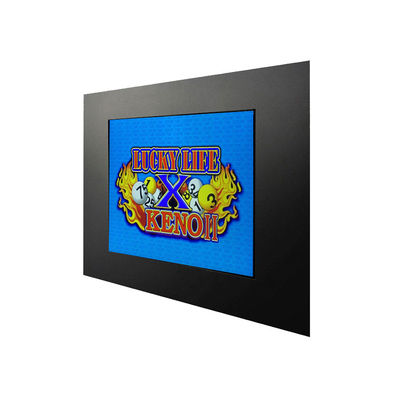

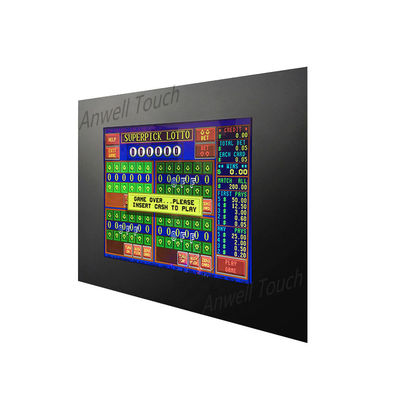

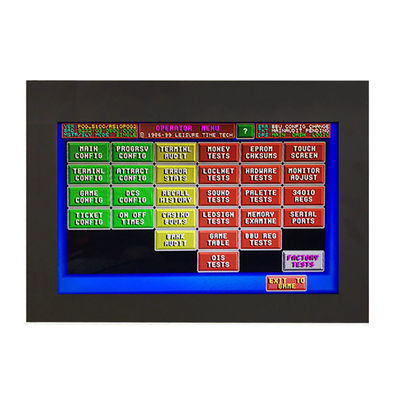

Product Picture:

22 Inch IR Touch Monitor With Bezels 3M Touch For WMS / POG / ASR Gaming 0

Product Paramenters:

Anwell Model	AW220IS-G001
Monitor Color	Silver
Aspect Ratio	16:10
Resolution	1680 x 1050
Colors	16.7 M
Active Area	473.76(W)×296.1(H) mm
Number of Touches	1 points_Touch Infrared Touch Screen
Brightness	300cd/㎡
Response Time	5 ms
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Contrast Ratio	2000:1
Backlight Lifetime (hours)	LED / 50,000h

Touch Technology	1 points Infrared Touch
Touch Connector	RS232
Touch Panel Drivers	Compatible with 3M/ELO protocol
Touch Response Time	＜5ms

Power Supply	Input AC110 ~ 240V
Output	DC12V/4A
Interface	VGA,RS232
Power consumption	≤45W

Temperature	Operating 0℃~50℃/Storage‐ 20℃~60℃
Humidity Range (RH)	Operating 20%RH~80%RH/Storage10%RH~90%RH
Housing material	Metal
Installation	75mm and 100mm VESA mount
Warranty(year)	1 Year
Support customization

Structural dimension diagram:
