SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor

SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor
SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor

Large Image :  SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor

Product Details:
Place of Origin: China
Brand Name: Anwell Touch
Certification: CE,RoHS,FCC
Model Number: AW194CB-GT01
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiable
Packaging Details: Standard carton box
Delivery Time: 8-15 working days
Payment Terms: TT
Supply Ability: 1000 pieces per Month
Contact Now

SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor

Description
Display Colors: 16.7M Response: <10 Msec
Viewing Angle: 89/89/89/89(Typ.)(CR≥10) Touch Technology: Capacitive Touch
Touch Connector: USB Surface Hardness: 7H
Operating Temperature: 0°C~45°C Humidity Range (RH): 10%-80%RH, 40"C
Highlight:

19.4inch lcd button panel

,

19.4inch ideck touch monitor

,

16.7m lcd button panel

Product Description
Specifications
TwinStar J43 iDeck
Panel Size 19.4"
Active Area 476.64mmx126.6mm
Resolution 1920*510
Pixels Pitch 248.25 (per one triad) ×248.25
Display Colors 16.7M
Scale Ratio 19:5
C/R 3000:1
Brightness 1000cd/cm²
Back-Light LED Lighting Bar Type
Viewing Angle Range 89/89/89/89
　
Touch Technology P-CAP
Touch Points 10Points(Max)
Touch Construction G+G
Touch Cover Glass T=1.8mm
Interface USB-B Female
Input Source Finger
Response Speed <10ms
Supports OS windows xp/7/8/10, Linux, Android, MacOS
Technical Service Customize protocol for USB and RS232 interface
Firmware Upgrade Supports Upgrade Firmware Via USB Interface
　
Temperature Operating:0°C~45°C
Storage:-20°C-55°C
Humidity Operating:10%-80%RH, 40"C
Storage:10%-80%RH, 40°C
　

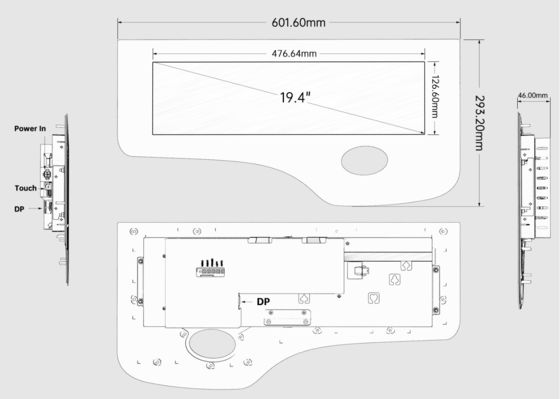

Product Dimension 664mm x 247.3mm x 46.4mm
Net Weight 2.5kg
Package Dimension 740mm*300mm*200mm
Gross Weight 3.2kg



SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor 0SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor 1SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor 2
