21.5inches Anwell Infrared Touch Panel PCAP With 3M Microtouch Controller

Large Image : 21.5inches Anwell Infrared Touch Panel PCAP With 3M Microtouch Controller

Product Details:

Place of Origin:	China
Brand Name:	Anwell Touch
Certification:	CE,Rohs,FCC
Model Number:	AW
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	Negotiable
Packaging Details:	Standard carton box
Delivery Time:	8-15 working days
Payment Terms:	TT
Supply Ability:	5000 pieces per Month

Contact Now

21.5inches Anwell Infrared Touch Panel PCAP With 3M Microtouch Controller

Description

Type:

PCAP Touch Panels

Series:

For Gaming

Aspect Ratio:

16:9

Interface Type:

Serial Or USB

Highlight:

21.5inches pcap touch panel

21.5inches infrared touch panel

usb pcap touch panel

Product Description

21.5inches PCAP Touch Screen Panel

Touch Gaming monitor Feature:
• Compatible with 3M/ELOs protocol
• Touch signal input : RS232 / USB
• Signal input: VGA/DVI/HD-MI
• Support embedded rack mounted / VESA wall mounted

• AU,EU,US,UK plug available
• Application: Game machine,Interactive kiosk, Interactive digital signage,Industrial enclosure, Cabinet, In-wall devices

Specifications
21.5inches PCAP Touch Screen Panel
Model	AW215C
Monitor Color	Black
Resolution	1920 x 1080
Colors	16.7 million
Number of Touches	Single-touch ( multitouch optional)
Brightness	300cd/m²
Response	5 msec
Viewing Angle	178/178(°)
Contrast Ratio	1000:1
Backlight Lifetime (hours)	LED / 50,000h

Touch Technology	Capacitive touch
Touch Connector	USB/RS232
Touch Panel Drivers	compatible with 3M/ELO protocol
Touch Life (Contacts)	Unlimited
Surface Hardness	7H

Power Supply	Input AC110 ~ 240V
Frenquency	60Hz-75Hz
Power consumption	25W

Operating Temperature	-10 ~ +65(°C)
Humidity Range (RH)	10%-90%
Housing material	Metal or Aluminum
Mounting	75mm and 100mm VESA mount; Rear mount ; Flush mount with included brackets

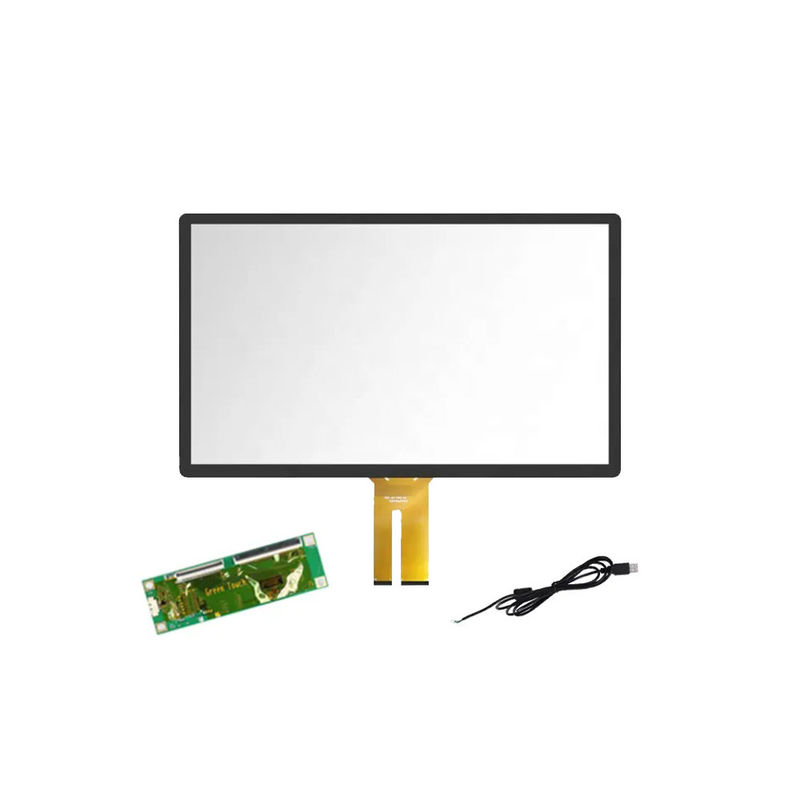

21.5inches Anwell Infrared Touch Panel PCAP With 3M Microtouch Controller 1

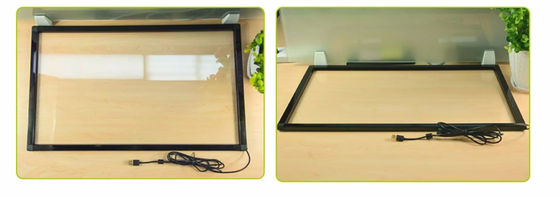

21.5inches Anwell Infrared Touch Panel PCAP With 3M Microtouch Controller 2
